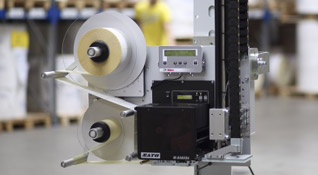

Legi-Air 4050 Gen2
This system is a best seller with more than 15 000 units installed and its popularity is due to being a robust, agile, reliable, long-lasting system, and above all, it does the job right. This second version brings enhancements at the firmware level to allow new functions and comes with more resistant boards. The system supports several types of applicators for different application methods.
Apply Labels at High Speeds
With the Legi-Air 4050 Gen2 you can print the batch number and expiration date on your pre-printed label or print the whole label when you really need it, moments before its application onto the product. The system can reach very high application rates, somewhere around the 80 applications per minute.
Apply your labels in the right spot with millimeter precision. No more misplaced, crooked or wrinkled labels.
The problem of keeping stocks of labels with variable information that eventually gets obsolete is a thing of the past. Printing the labels when you really need them saves time, money and prevents headaches.
Compatible with most Print Engines
You can equip your Legi-Air 4050 Gen2 with a thermal-transfer printer module from any of the famous brands like Zebra®, Sato®, Datamax®, among many others, to print labels with good quality.
Easy to Use
This system is very easy to set-up. You just need to calibrate the printer to the label size being used, just like it is done for any other desktop label printer. Then, simply submit a print job and the applicator automatically synchronizes with the printer, catching the label and applying it onto the product that was detected by a sensor.

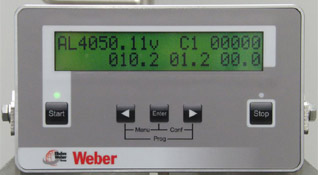

With Industrial Console
Quickly configure the system using the controller with a digital display. Navigate through the menus with ease, change parameters and read the system's status messages.
Detect Lost Labels
When it is properly adjusted, the system practically never drops a label, unless there is a big external turbulence or an inadvertent contact with the tamp. The label presence on the tamp is properly detected by an air-pressure sensor, that is, if the vacuum level drops, it means that the label fell off of the tamp pad. Optionally, an optical sensor can be used for this detection. In order to never let a product pass without a label, you can configure the system to go into error mode on these situations (and possibly stop the production line) or you can ignore the error for cases where a verification and separation of badly labeled products is done downstream.
Use All the Features of the System
You can use any compatible software with the print engine that you have picked, but it is with Legitronic® that you can take full advantage of your printer. You can create simple or complex labels, with GS1 barcodes and RFID data and start a print job on the Legi-Air 4050 Gen2. Learn more about the things that you can do with the software in Legitronic.
You can install several applicators on the system to perform simple and single applications on the top or on the side of the products with a linear stroke arm, or on the front or rear using rotative tamps. Or you can also apply labels on the corner of the products or even execute double applications onto the same product with only one system and pass-through. All that without needing to stop the conveyor line. The applications can be made with or without contact with the products, no matter if they are simple boxes or products with more complex shapes, such as bottles, flasks, cans, tires, among many other forms. With a single stand, you can adjust the system to apply on any position and the systems are available in left- or right-hand versions (LH/RH).
With an unwinder that allows big label rolls and a rewinder for the label liner that works in 1:1, that is, with capacity to rewind the complete roll, you will have to make few stops to do label roll replacements. And we can supply label rolls with the right amount that you need so that during the stops you can replace both print ribbon and the label roll at the same time.
On the digital HMI, you will have a label counter so that you know how many application cycles were performed. The counter has a capacity for 10 000 applications and then starts over automatically. You can reset the counter at any moment or you can use a countdown feature by setting the counter to a value greater than zero. In that case, the labeler will automatically stop the labeling process when the counter reaches zero.
High Quality Sturdy System
These labelers are very robust and reliable, with a lifespan that goes over 10 years. Built exclusively with quality materials, you will not find a single speck of rust and, besides the occasional cleaning of possible label adhesive build-up, they do not require neither lubrication or maintenance.
Safe and Certified Systems
These systems have CE certification and follow all European safety norms. Most of the standard system are complete complying systems (CC) with the safety norms and do not require additional protections or safeguards, given the fact that they do not exert forces over 50N. When the application rate is critical, there are faster versions in which the system is unlocked to go beyond the 50N of force threshold, being these versions identified as NC (not completed), since they require additional safeguards. If you choose a NC version, the system will include door-open sensors that will immediately halt the labeling operation when the safeguards are opened, so that the system cannot cause injuries. Furthermore, they also bring emergency kill switches to immediately stop the system manually.
Easy Integration: Control the System
The system can send and receive several signals. As input signals, the system can execute the typical triggers to start the label printing process, extend the tamp and apply the label. The applicator can be configured to divide the 3 steps of a cycle (print, extension and application blow) or unite the extension and blow in one task and the label printing can be set to start automatically (when there is print data) as soon as the cycle begins. There are more input signals, like the reprint signal, very useful when a scanner is used to check the printed label. The input signals work in active and passive modes, that is, the 24V can be sent by the PLC or supplied by the labeler itself. Like this, only a contact needs to be switched.
Easy Integration: Get Status Information
The system makes available several output signals, such as, the information if the system is ready, if there are errors, if the tamp is in the home position, if there is data on the printer, if the printer is feeding (i.e., printing), if the label is on the tamp pad, among other signals. The applicator also sends a signal to warn when the label roll is approaching its end. You can also configure a synchronization signal that becomes active after the product's detection and deactivates at the end of the cycle, when the tamp returns to the home position, or to simply send a pulse after the application, in this last scenario, allowing a definition of a delay and duration in which the signal will be active.
Approved by System Integrators
With the Weber® policy for Global Export, the system integrator companies can export our print-and-apply systems as part of a bigger system and the final user gets all the technical support in the destination country, performed by the local distributor of that said country, all completely transparent and without additional costs. All that a system integrator must do is mention that the system is for resale and when the destination country is known, inform us about it so that we can proceed with the transfer of responsibility of the system to the local distributor.
Excellent Price/Quality Relation
This might not be the most affordable system on the market, but when considering the value and quality of this machine, the price is actually excellent. And if you throw in the life expectancy of this system, plus the expected reduced down-times and really low maintenance costs, in the long run, it will not come as a surprise if this system ends up being cheaper. You end up saving on, not only money, but on headaches as well.
Many Application Methods
You can equip your Legi-Air 4050 Gen2 with one of several available applicators so that the system can be perfectly adapted to your products and type of application. Check the different kinds of applicators available below.

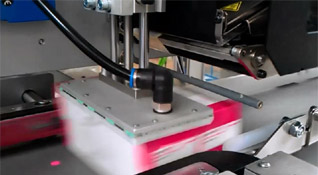

Linear Movement Applicators
System with the classic Tamp-Blow method for top or side application, without contact with the products and no conveyor stops. With a proximity sensor, it is possible to apply labels on products with different heights. It can also be configured to work in Inverted-Tamp-Blow, where the tamp immediately extends and waits for the product already in position, and retracts after blowing the label onto the product, making it capable to label on fast production lines. There are several arms with different lengths, starting with the high-speed applicators with a short stroke up to 50mm and going all the way to the longest one that can reach 1200mm.
Rotative Movement Applicators
System with a rotative Tamp-Swing arm for application on the front or rear of the products, without requiring a full stop.

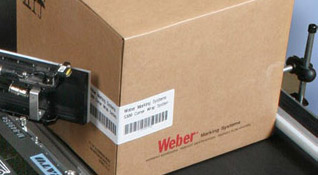

Legi-Air 4050 CWB - Corner Applications
System for wrapping the labels around the corners of boxes, using the Corner-Wrap method in which the tamp does not immediately retract, so it can fold the label around the edge. The advantage of this system is that the applicator arm is a simple rotative tamp and it does not require stops, however, the products cannot be too light. For lighter products, a Split-Tamp can be used.

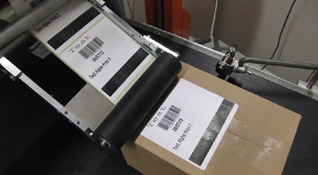

Legi-Air 4050 WO - Say Goodbye to Compressed Air
The system uses the popular Wipe-On method that besides allowing the application of labels in many positions and without stopping the production line, it also does all that without needing compressed-air. This means greater cost reductions and less maintenance. The printer engine only prints the labels and does not peel them off, and so, a special peeler bar with a pressure unit can be used further ahead.

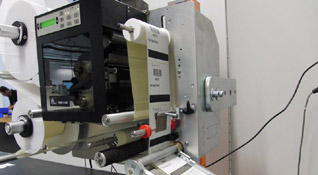

Legi-Air 4050 AC - Wipe-On with Accumulator
This system is very similar to the Legi-Air 4050 WO, also using the popular Wipe-On method that besides allowing the application of labels in many positions and without stopping the production line, it also does all that without needing compressed-air. This means greater cost reductions and less maintenance. The printer engine only prints the labels and does not peel them off, and so, a special peeler bar with a pressure unit can be used further ahead. What is special about this model is the innovative accumulator that creates a buffer of already printed labels, making the system apt to apply on products that travel in speeds faster than the print-speed. Thus, even if the printer is printing at 16m/min, which is already a considerably high-speed, the system can still apply at 50m/min. Depending on the label size, several products can be labeled in a single burst and the system recovers and refills the accumulator again when there is an idle period in which there are no products passing.

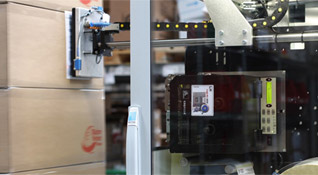

Legi-Air 4050 P - Pallet Applicators
These are very similar to the normal Tamp-Blow version, but, as the systems are intended for pallet identification, the pallet applicators have reinforced and longer arms. There are versions for single or double applications, for putting labels on two adjacent sides of each pallet.

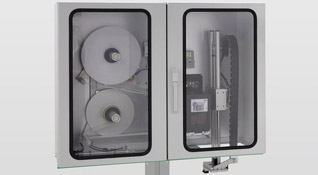

Legi-Air 4050 I
The Legi-Air 4050 system is put inside a protective cabinet and is intended for problematic environments, such as dusty or humid factories. The cabinet has a door that opens when the tamp is applying labels. Optionally, the cabinet can include a heater for cold environments or an air conditioner.
Print-Apply Labeling System
Print-Apply Labeling System for Pallets (LA4050 P models)
Legi-Air 4050 LH (Left-Hand Version)
Legi-Air 4050 RH (Right-Hand Version)
*Each model has several options of type and length of the arm
Zebra, Datamax, Sato, Novexx, Avery or CAB (pick yours)
Maximum Print Speed
406mm/s (depends on the equipped print engine)
600dpi (depends on the equipped print engine)
Up to 80 labels per minute (depends on the application)
Minimum Label Width
Maximum Label Width
160mm (depends on the equipped print engine)
Minimum Label Length
Maximum Label Length
Wipe-On (with accumulator)
Tamp-Blow with Rejection Pad
Tamp-Blow for Pallets (Legi-Air 4050P)
Tamp-Swing for Pallets (Legi-Air 4050P)
(depends on the chosen applicator)
Adjustable up to 1200mm (depends on the model)
(drilled for 1 label size)
Front + Side
Side + Rear
Side + Top
Front + Top
Top + Rear
- Front + Side
- Side + Rear
- Front + Top
- Top + Rear
- Side (Flat Bottles)
- Top (Lids)
- Among others...
(depends on the model)
*requires special conveyor
Stepper (Rewinder) + Printer's Motor
300mm External Diameter (approx. 450m)
Optionally, 350mm External Diameter (approx. 600m)
Legitronic (recommended, not included)
HMI with 2-line Digital Display
Print Engine's Display
Languages (Digital HMI, Pack 2)
2x Product Sensor
1x Alarm Lamp
1x Low Label Sensor
1x Power Connection
1x Power Extension (for the printer)
+ Printer's Ports
90 ~ 260V AC, 50Hz / max. 1200W (including printer)
Approx. 75kg (depends on the model)
Dimensions (Width x Depth x Height)
Approx. 764mm x 523mm x 584mm (depends on the model)
72dB(A), 80dB(C) (depends on the model)
Proximity Sensor on Tamp-Pad (variable stroke)
Multiflex Tamp (for label size quick-change)
Jumbo Unwinder e Rewinder
Stop-Valve (tamp remains up after switch-off)
Zero Down Time Controller
